Pushbuttons and Indicator Lights

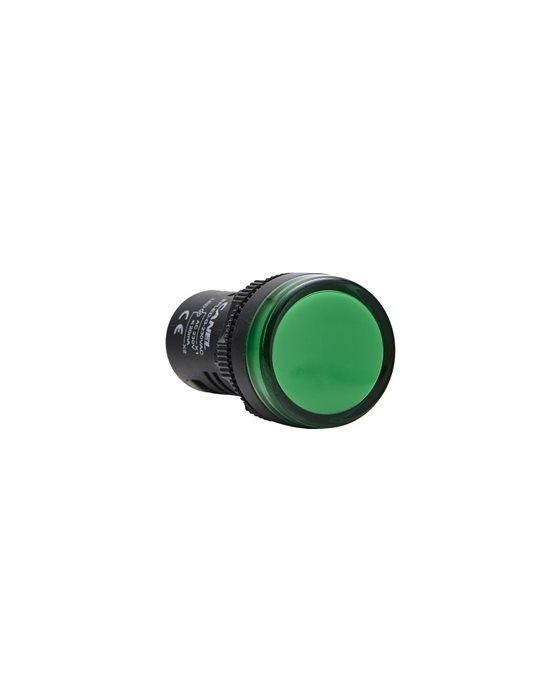

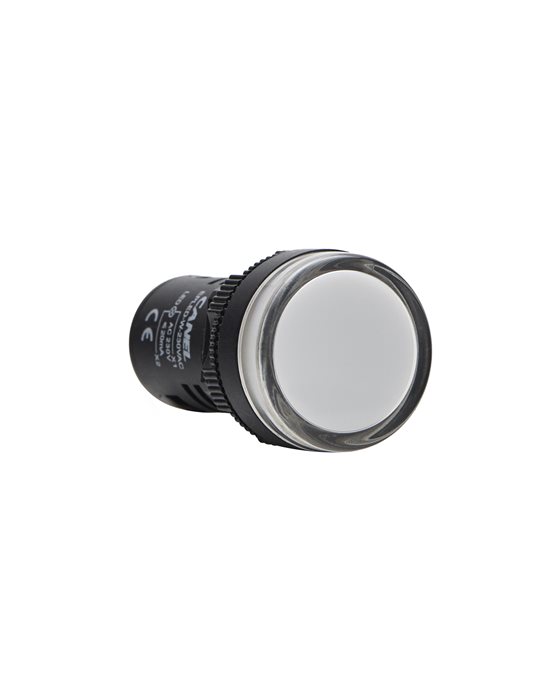

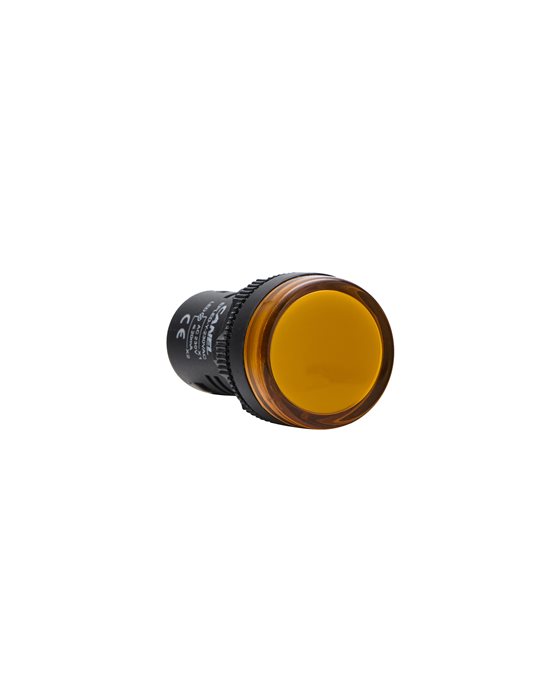

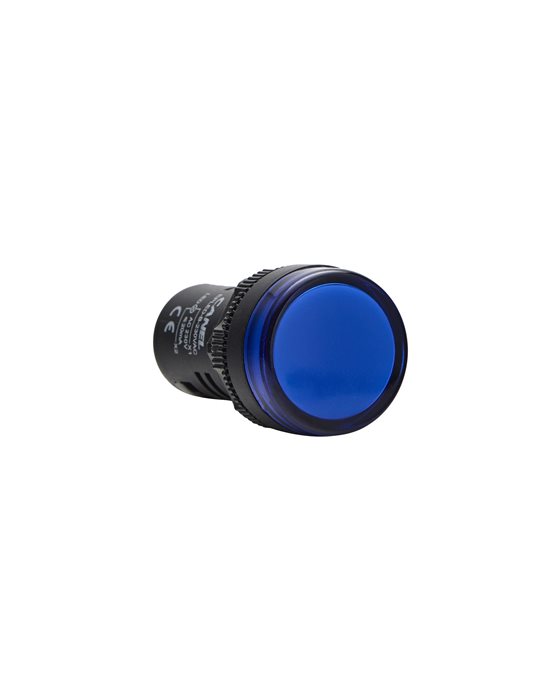

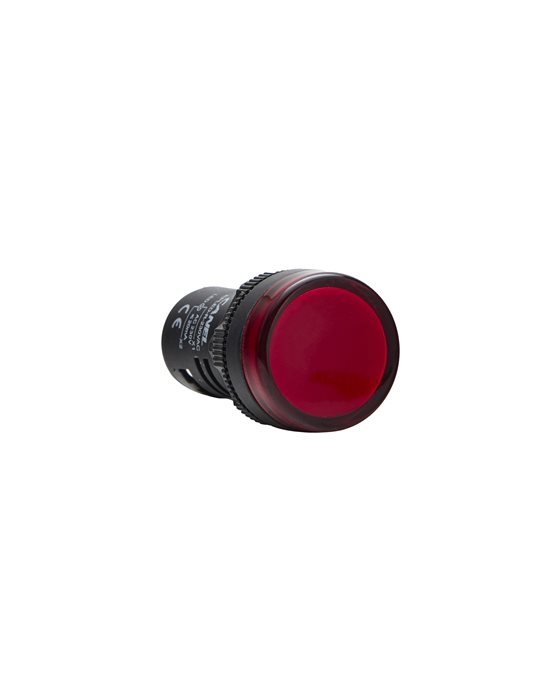

Indicator Lights EPLED

Standard: IEC 60947-5-1
Operating Voltage: 230 VAC, 50 Hz
Available Indicator Colors: Red, Blue, Yellow, Green, and White
Operating Conditions: Temperature: -20°C to +60°C, Relative Humidity: 5%–80%
Power Consumption: 4.4 W
Acceptable Conductor Cross-Section: 0.5, 0.75, 1.0, 1.5, 2.0, and 2.5 mm² (Solid or Stranded Conductors)
Maximum Panel Thickness: 4 mm
Mounting Hole Diameter: 25 mm

Model

EPLED-R-230VAC

EPLED-B-230VAC

EPLED-Y-230VAC

EPLED-G-230VAC

EPLED-W-230VAC

Color

Red

Blue

Yellow

Green

White

Voltage

230V

Power

4.4w
